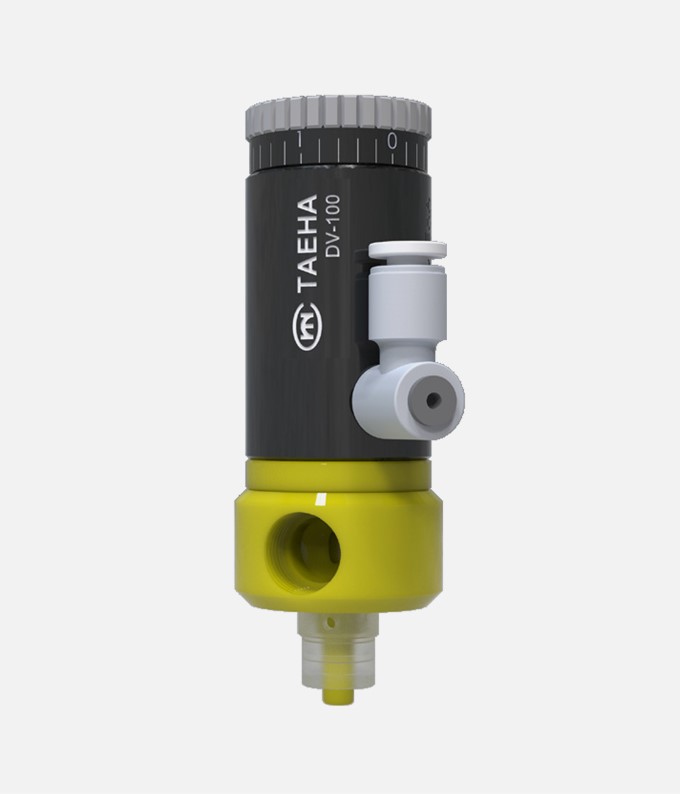

DV-100 Diaphragm Valve
Diaphragm Valve
Features
Excellent for dispensing low-viscous material in a small and fine quantity. Good chemical resistance due to polymer material of wetted part.
Excellent for dispensing low-viscous material in a small and fine quantity. Good chemical resistance due to polymer material of wetted part.
Applicable Material
Low viscosity material such as reagent, solvent, instant glue, anaerobic adhesive, flux, ink, electrolyte, etc.
Low viscosity material such as reagent, solvent, instant glue, anaerobic adhesive, flux, ink, electrolyte, etc.
Description
TAEHA’s Dispensing valves are widely used in various industries to provide reliable and accurate dispensing solutions. From low-viscosity materials to high-viscosity materials that are difficult to dispense, we have a lineup of valves that can dispense accurately and consistently. Excellent product quality control by owning a dedicated facility that processes and produces valve precision parts. Experience highly reliable metering valves that combine the expertise of Taeha’s long-standing dispenser with our unique valve design.
Specification
| Dimension | Ø27.0 x L79.5 |
| Weight | 80 gr |
| Driving Air Pressure | More than 0.4 MPa (58.02 psi) |
| Material Feeding Pressure | Max. 0.5 MPa (72.52 psi) |
| Port Size (Air_IN) | Ø6 Hose |
| Port Size (Material_IN) | BSPT 1/8 |
| Port Size (Material_OUT) | LUER LOCK (male) |
| Flux (KV value) | 0.3 L/min |
| Driving Part Material | Aluminum |
| Wetted Part Material | UHMW-PE |
