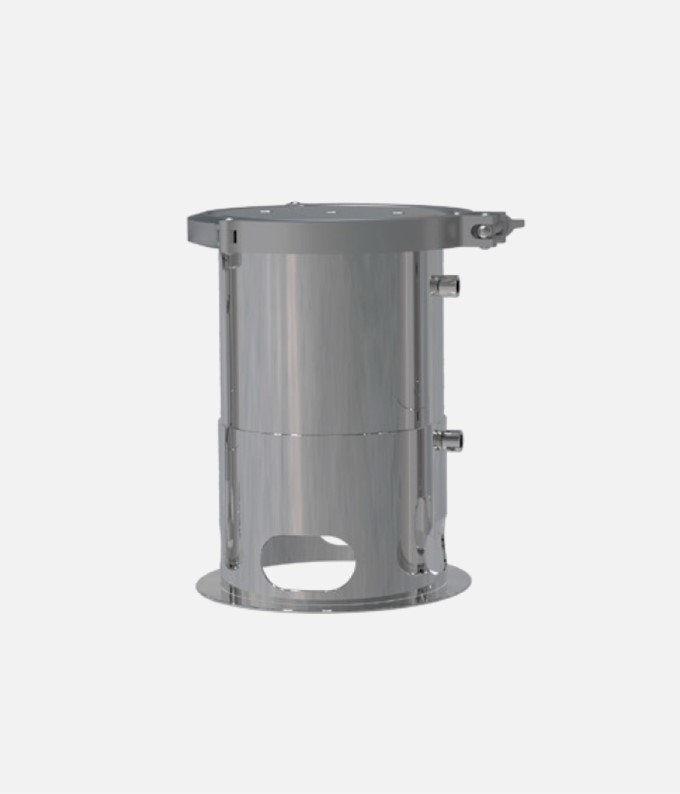

SSR-5BP

Round type Pressure Tank 5 Liter – Bottom Port

– A type that uses liquid put directly into the material.
– The wide opening makes it easy to add liquid materials and easy to clean.
– There is no liquid balance due to fluidity due to the lower plate structure.

Description

High efficiency in dispensing because a large amount of liquid is contained in the tank. High responsiveness thanks to the various standardized options according to the characteristics of the liquids and the customers’ needs (electrolytic polishing, Teflon coating, etc.). Safety-certificated type can be custom-made to enhance work site stability. As our products are standardized in various types of capacities (1-50L), with a method of inputting liquid directly and a method of using internal containers, we have the system that can be immediately delivered.

Specification

MaterialSUS304
Cover TypeFerrule Clamp Type
Material OutletBottom port: BSPT 3/8″, Female. (*option : Top port)
PolishingBuff Polishing
SealingO-Ring (NBR), Capsule O-Ring (Viton), Silicone O-Ring, EPDM O-Ring
Operating Pressure0.5 MPa
Dimension A353.5 mm
Dimension B249.1 mm
Dimension CØ205 mm
Dimension DØ159.6 mm
Dimension E2.8 mm
TypeRound – Bottom Port
Capacity5 Liter
